VERSAX® - 9HP - Vehicle Mount - Electric Start

SKU: 4087-100078
$3,195.00

BEFORE PURCHASE PLEASE EMAIL WEBORDERS@HEIMANFIRE.COM OR CALL 605.543.6212 TO GET A SHIPPING QUOTE. ONLINE CHECKOUT DOES NOT CALCULATE CORRECT SHIPPING FREIGHT RATES.

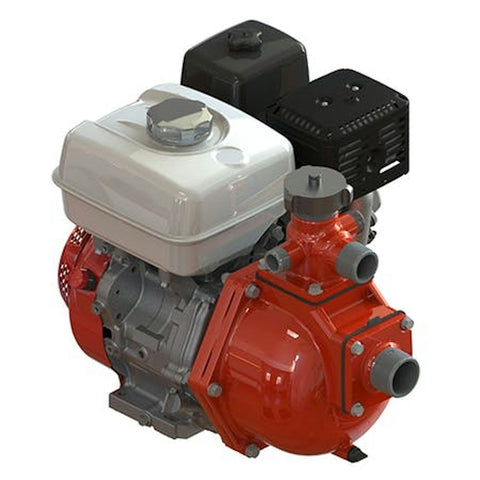

The VERSAX®-9W is powered by a 9 HP Honda engine configured to be portable with a wraparound frame.

The VERSAX® is a versatile, rugged and economical twin-impeller self-priming pump powered by a Honda or a Briggs & Stratton Vanguard . It provides superior water-transfer performance as well as the ability to combat fire from greater distances and points of elevation. The VERSAX® is a multipurpose fire pump that can also be used for other applications such as tank filling, water transfers and as ATV slip-on units.

APPLICATIONS

  • Firefighting
  • Tank filling
  • High head general water transfer
  • Boom spraying
  • Irrigation
  • ATV slip-ons

FEATURES AND BENEFITS

  • Twin-impeller design provides additional pressure for longer and higher pumping applications
  • Pump casing and diffusers manufactured from quality corrosion-resistant grade aluminum for long life
  • Nylon glass fiber reinforced impellers are fully corrosion-proof and lightweight
  • Removable discharge and suction ports
  • Provide quick access inside the pump volute
  • Cost-effective ports replacement in case of damage (e.g. damaged threads)
  • 3-way discharge port for easy installation
  • Powder-coated casing for added corrosion resistance
  • Self-priming for more versatile installation options
  • Easy access to drain port
  • Low oil protection
  • Fastwire™ included on all vehicle-mounted units
  • Comprehensive user and service manuals
  • EPA certified
  • Industry Leading Performance and Longevity
MAXIMUM PRESSURE 150 PSI
MAXIMUM FLOW 105 US GPM
MAXIMUM HEAD 347'


92 GPM @ 50 PSI
80 GPM @ 75 PSI
64 GPM @ 100 PSI


ENGINE:

Model: Honda, GX270 Series, 4-stroke, horizontal shaft, OHV, air cooled gasoline

Starting System: manual; recoil with electric start option

PUMP END:

Type: Self-priming 2 stage centrifugal pump

Intake: 2" Male NPT

Discharge: 1.5", 1", 1" Male NPT

WEIGHT:

83.7 lbs.

OTHER SPECIFICATIONS:

FastWire: 3' CTRL Cable with 8 pin connector (standard)

Controls: Remote Mount Control Panels (sold separately - click options below)

PMSCP | MCP | WCP

***Does NOT come with caps or Engine Battery***
